01

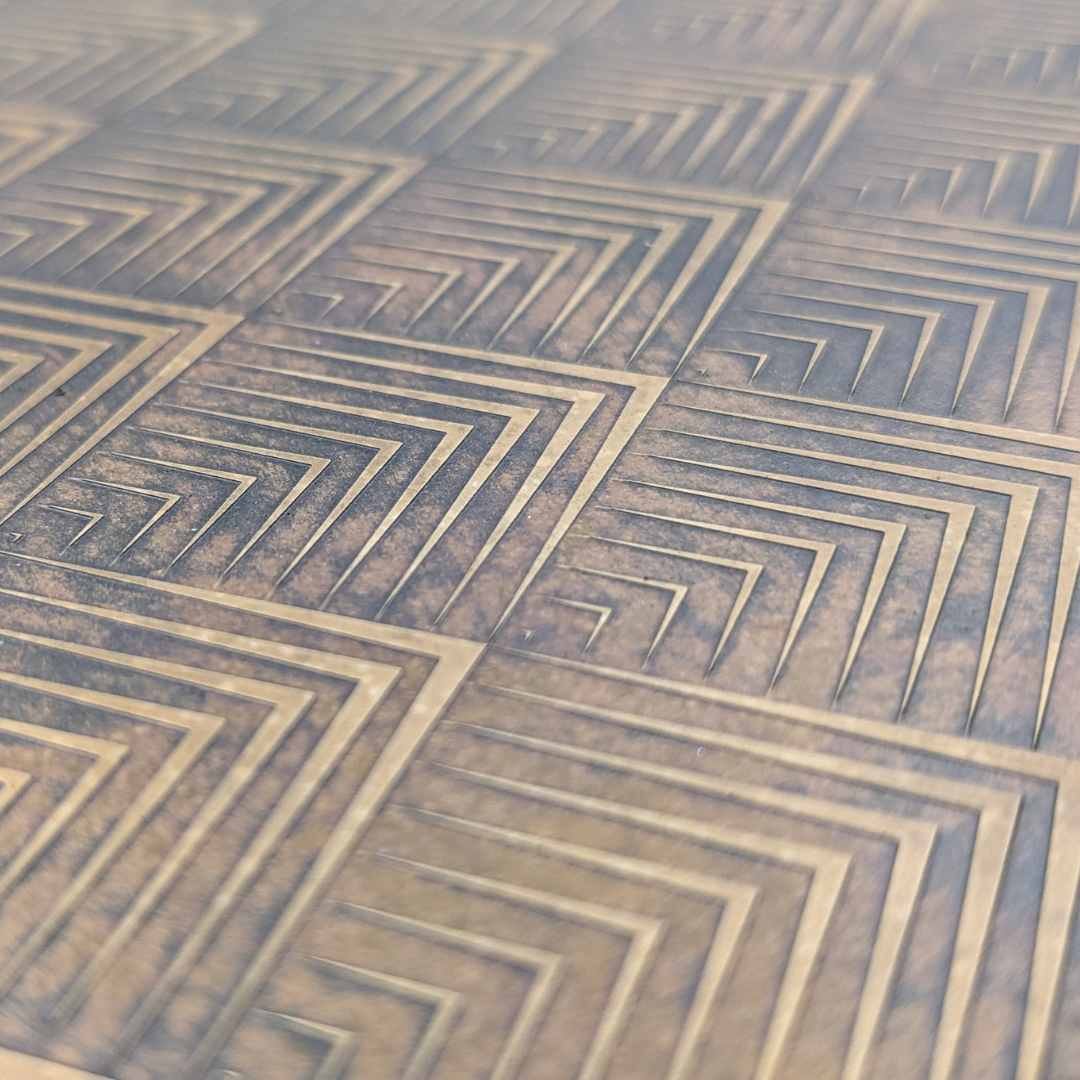

Aged geometric brass
Dark patina held in deep recesses.
Architectural material research74 curated studies
Vector to metal / material study 01
Explore an idea in metal.
Start with one of 74 exact catalogue vectors, then study it across architectural metals, bronzed tones, raised finishes and scales. Original geometry is retained throughout.

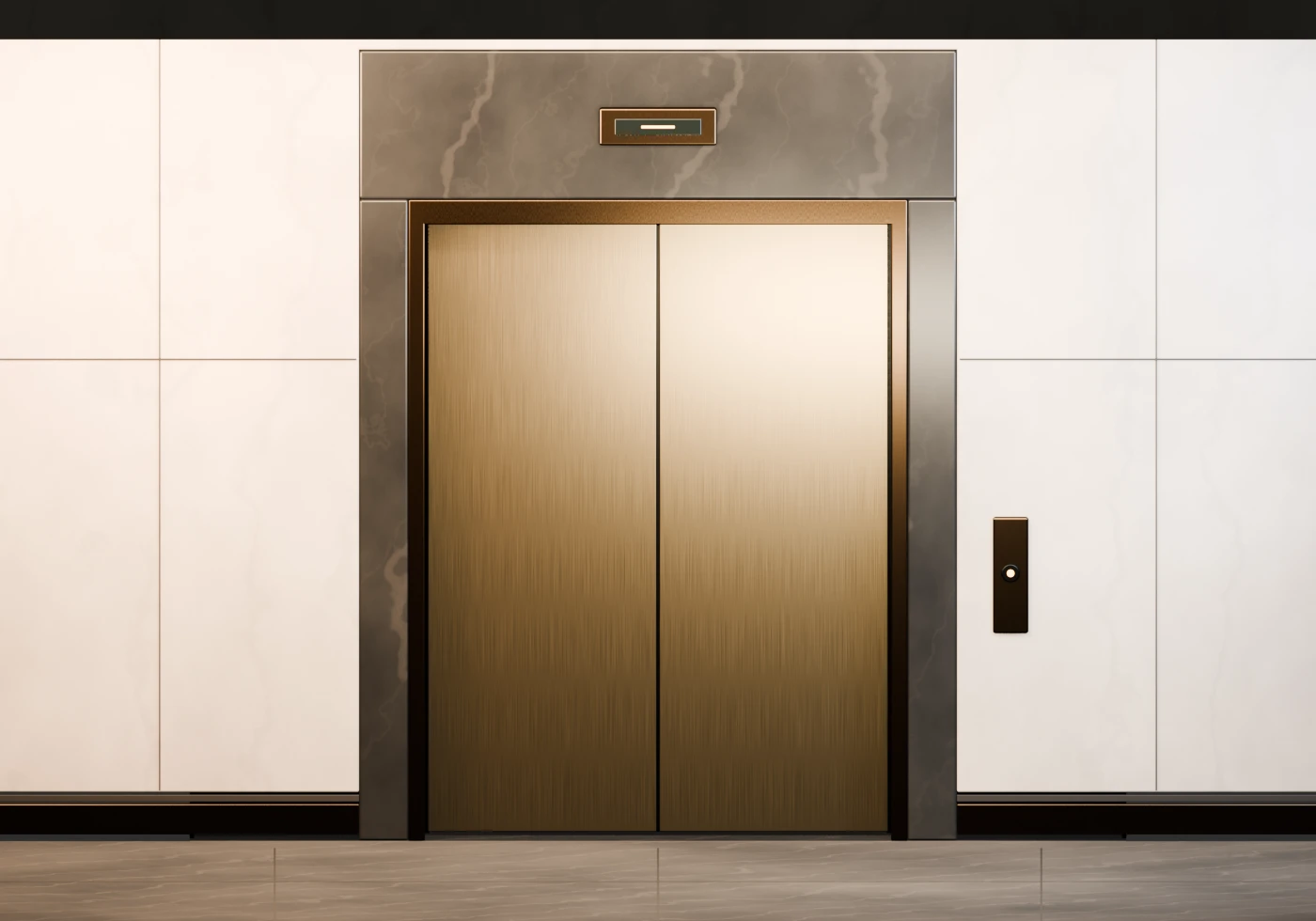

Lift lobby preview · Geometric Pattern - 5
Loading interactive lift lobby…
Natural brass300 mm repeatPhysically scaled · indicative lighting
Geometric Pattern - 5 uses line weight and direction to test brushed grain, grazing light and variable etch depth.
lineargeometricpattern
From phototool to finished surface
The vector is only the beginning.

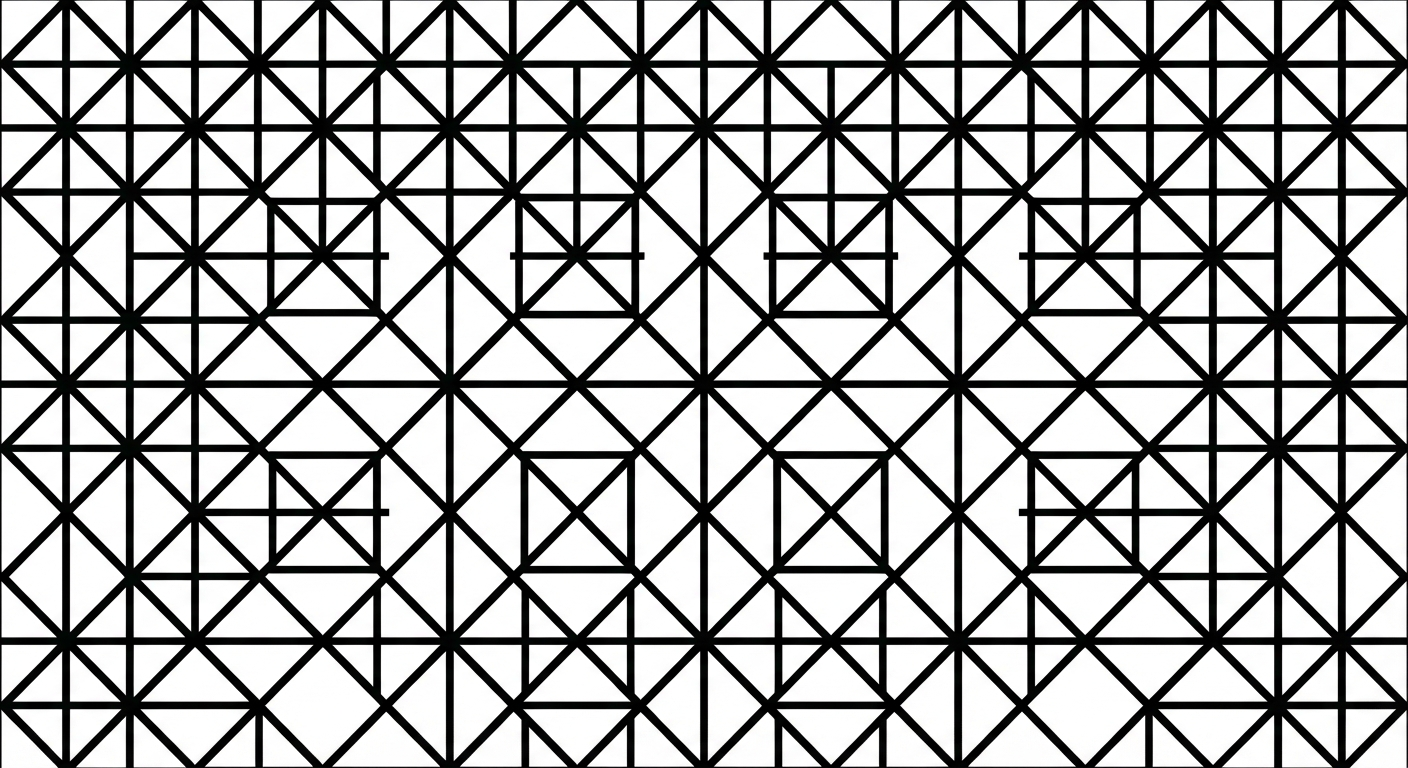

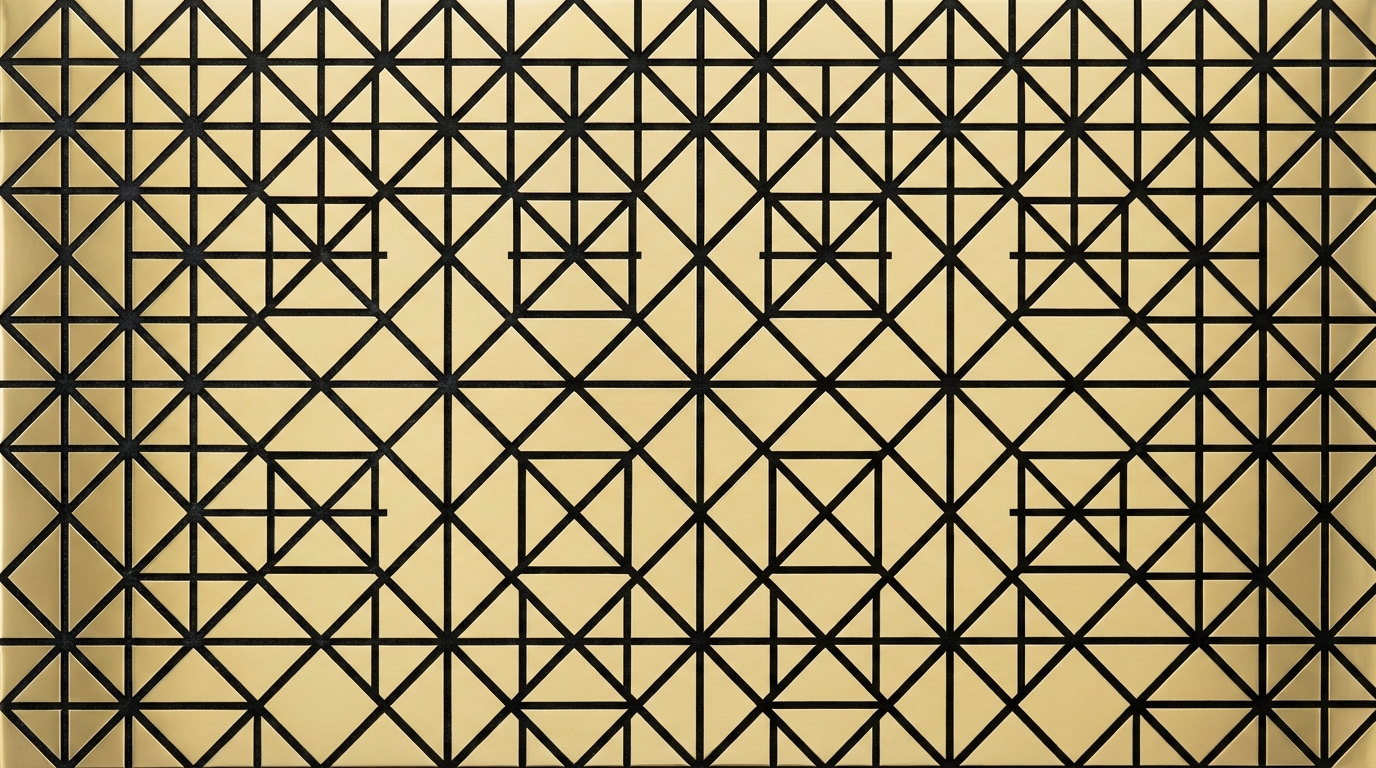

Slide between clean production artwork and the same geometry realised in etched brass. Scale, metal tone and raised finish turn a repeat into an architectural material.
- Input
- Manufacturing-ready vector
- Process
- Chemical etching to approved production depth
- Result
- Repeatable architectural surface
02

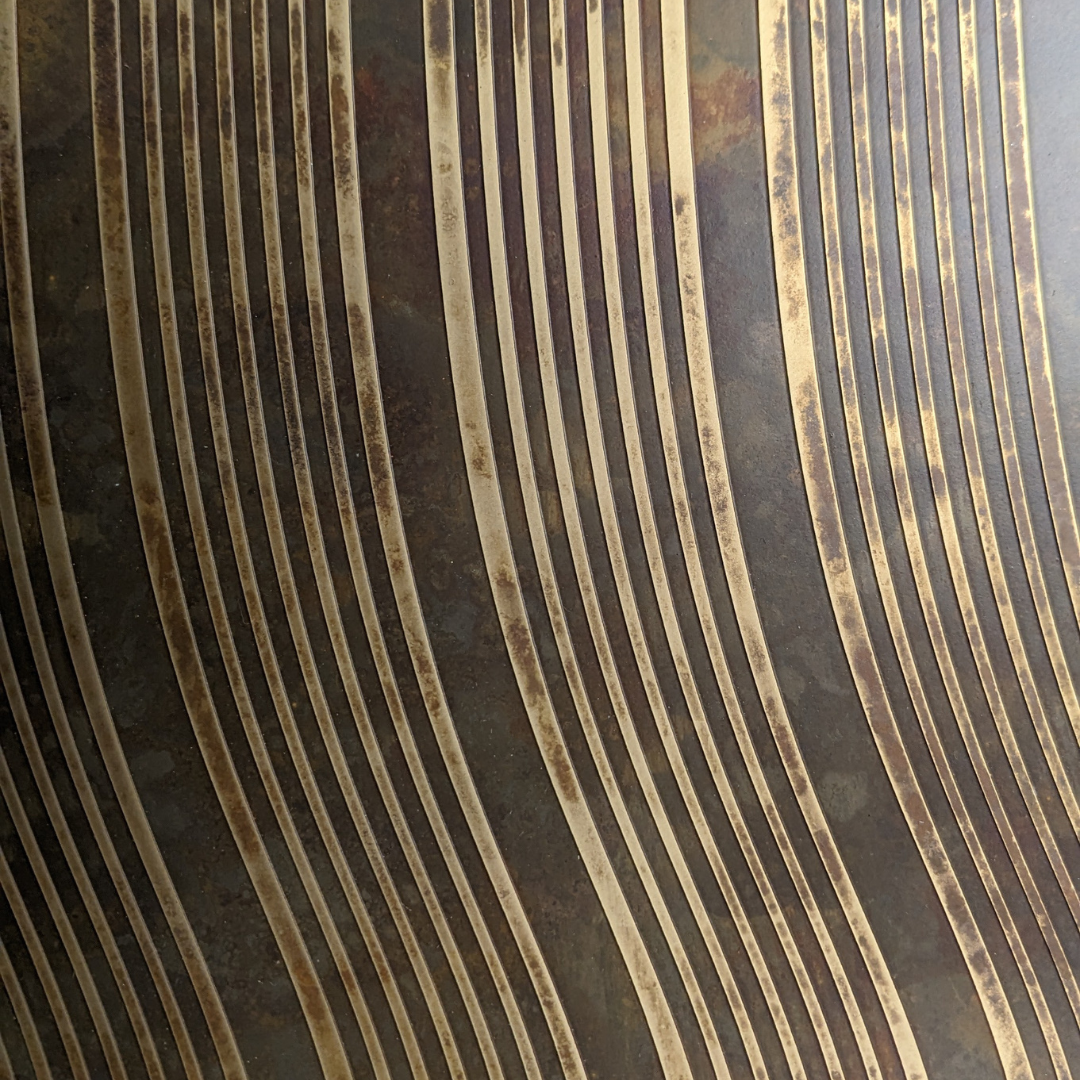

Curved line patina
Organic movement translated into relief.
03

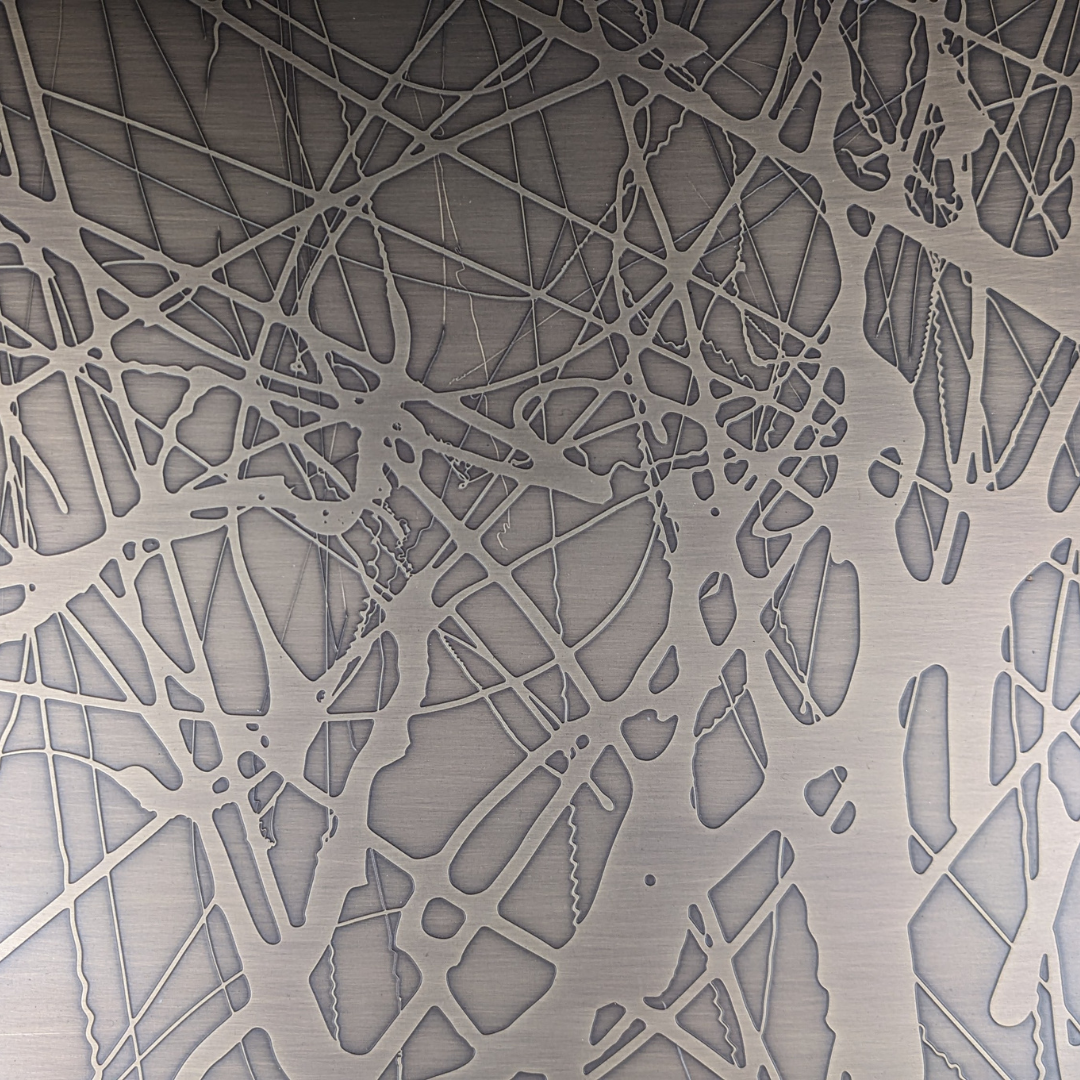

Brushed stainless
Precision linework in a cooler brushed metal.
A starting geometry, not a finished ornament
Use it. Adapt it. Or bring your own project narrative.
Every study is a technical demonstration of scale, line, material tone and finish. Final artwork is reviewed for minimum feature widths, retained-metal strength and suitable etching depth before manufacture.
